Homelab Network Overview
Current Architecture
The current network is built around a UniFi Cloud Gateway Ultra with a UniFi-managed access point. The gateway provides routing, VLANs, and zone-based firewall policy, while UniFi-managed Wi-Fi maps wireless clients into the appropriate trust zone.
The design supports the wider homelab: Proxmox virtualization, containerized services, Home Assistant, DNS filtering, monitoring, remote access, and future Zigbee integration.
Architecture at a Glance
Internet
|
UniFi Cloud Gateway Ultra
|
+-- UniFi-managed Wi-Fi / access point
|
+-- Trusted VLAN
+-- Guest VLAN
+-- Lab/Servers VLAN
| +-- Proxmox
| +-- Docker / Portainer
| +-- AdGuard Home
| +-- Uptime Kuma
| +-- Home Assistant integrations
|
+-- IoT VLAN
+-- Smart-home and connected devices
+-- Planned Zigbee2MQTT environment
WireGuard provides remote access. Tailscale is currently being evaluated as a complementary option and is not documented as a replacement.
Network Segments
| Segment | Primary role | Policy intent |
|---|---|---|
| Trusted | Personal and administrative clients | Controlled access to required infrastructure services |
| Guest | Visitor and temporary clients | Internet access without access to private networks |
| Lab/Servers | Proxmox, VMs, containers, and infrastructure services | Explicit service exposure and restricted inter-zone access |
| IoT | Smart-home and lower-trust devices | Isolation with only required integration traffic allowed |
See VLAN Segmentation for more detail.
Core Infrastructure
Gateway and Wi-Fi
- UniFi Cloud Gateway Ultra
- UniFi-managed access point
- Centralized network and wireless management
- Zone-based firewall policies
Virtualization
- Fujitsu Esprimo Q7010
- Intel Core i5-10400T
- 32 GB RAM
- 256 GB NVMe SSD
- 1 TB external SSD
- Proxmox VE
Services and Projects
- Home Assistant
- Docker and Portainer
- AdGuard Home
- Uptime Kuma
- Knut AI and automation
- Borgen Audio on Raspberry Pi 4
- Planned Zigbee coordinator and Zigbee2MQTT
Architecture History

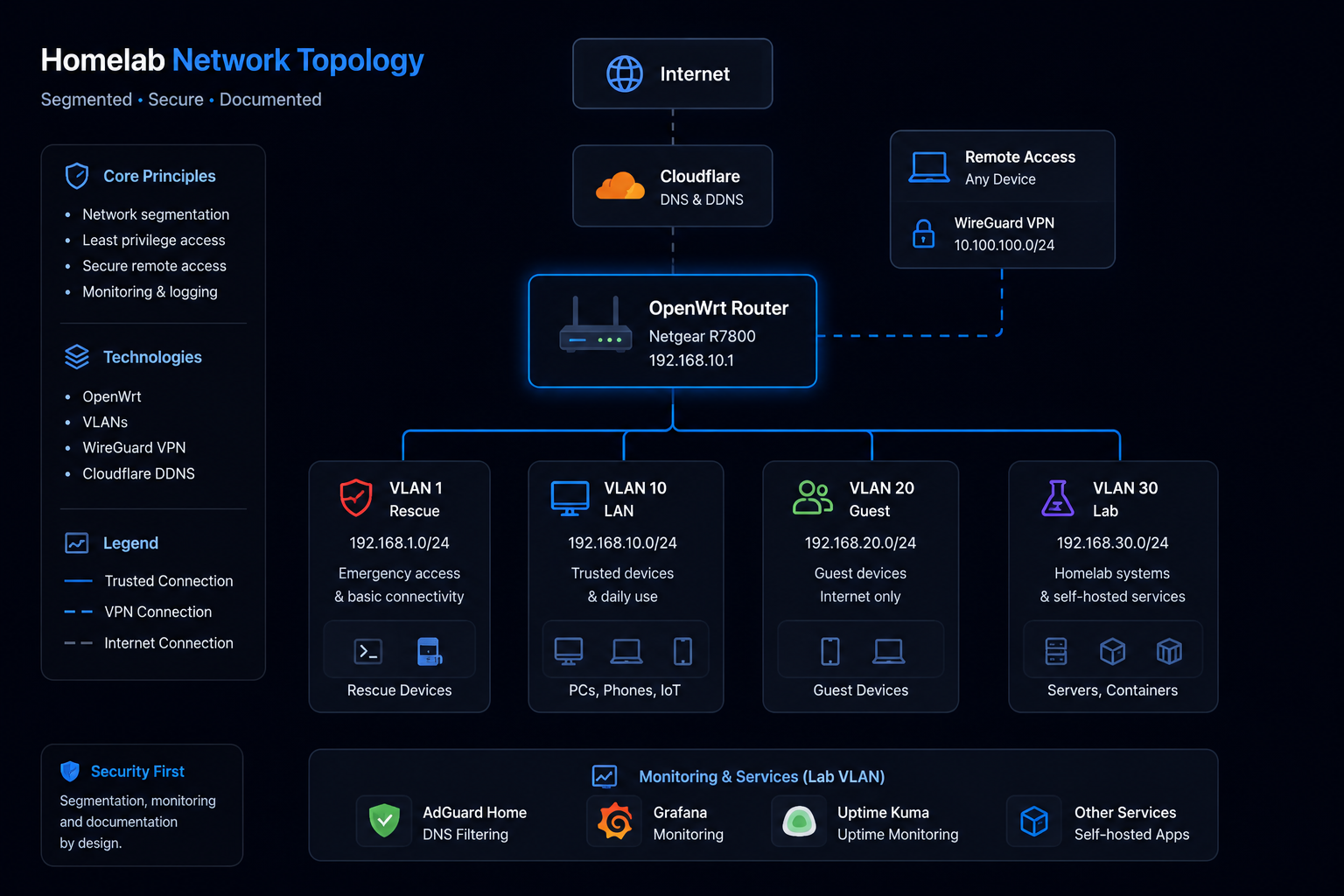

The previous network used a Netgear R7800 running OpenWrt. It established the first segmented design and provided practical experience with VLANs, firewall zones, WireGuard, Cloudflare DDNS, and Wi-Fi troubleshooting.
That design was later migrated to UniFi. The original topology diagram and configuration notes remain in the OpenWrt history so the repository continues to show the evolution of the lab.
