VLAN Segmentation
Status
Current design on UniFi
The homelab uses VLANs to separate devices and services by role and trust level. Routing and policy enforcement are handled by the UniFi Cloud Gateway Ultra through zone-based firewall policies.
VLAN Overview
| Network | Purpose | Examples |
|---|---|---|
| Trusted | Personal and administrative devices | Workstations, phones, and management clients |
| Guest | Visitor and temporary devices | Guest Wi-Fi clients |
| Lab/Servers | Infrastructure and test workloads | Proxmox, VMs, Docker, and self-hosted services |
| IoT | Smart-home and lower-trust devices | Connected devices and future Zigbee integrations |
VLAN identifiers and addressing are intentionally kept out of this public overview. The design focus is the trust boundary and the policy applied between segments.
Zone-Based Firewall Model
The firewall starts from isolation between zones. Cross-zone communication is enabled only when a documented service or administrative workflow requires it.
| Source zone | Policy intent |
|---|---|
| Trusted | Permit required administration and service access; avoid unrestricted access where it is unnecessary |
| Guest | Internet access only; block access to private networks |
| Lab/Servers | Allow required outbound traffic; expose services only through explicit rules |
| IoT | Isolate from Trusted and Lab/Servers; allow only required controller, DNS, and internet traffic |
| Remote access | Limit WireGuard clients to the resources they are intended to administer or use |
This approach follows least privilege and makes the expected traffic flow easier to review as the homelab grows.
Wireless Segmentation
The UniFi-managed access point maps wireless networks to the appropriate VLAN. This keeps guest and IoT clients separated even when they share the same physical access point as trusted devices.
Lab/Servers Segment
The Lab/Servers network hosts the virtualization and service layer, including:
- Proxmox VE
- Ubuntu Server workloads
- Docker and Portainer
- AdGuard Home
- Uptime Kuma
- Home Assistant integrations
Administrative access originates from approved clients in the Trusted zone and is controlled through firewall policy.
IoT Segment
The IoT network provides a dedicated trust boundary for smart-home devices. The planned Zigbee coordinator and Zigbee2MQTT architecture will integrate with Home Assistant without granting IoT devices broad access to the rest of the homelab.
See Planned Zigbee2MQTT Architecture.
Migration History

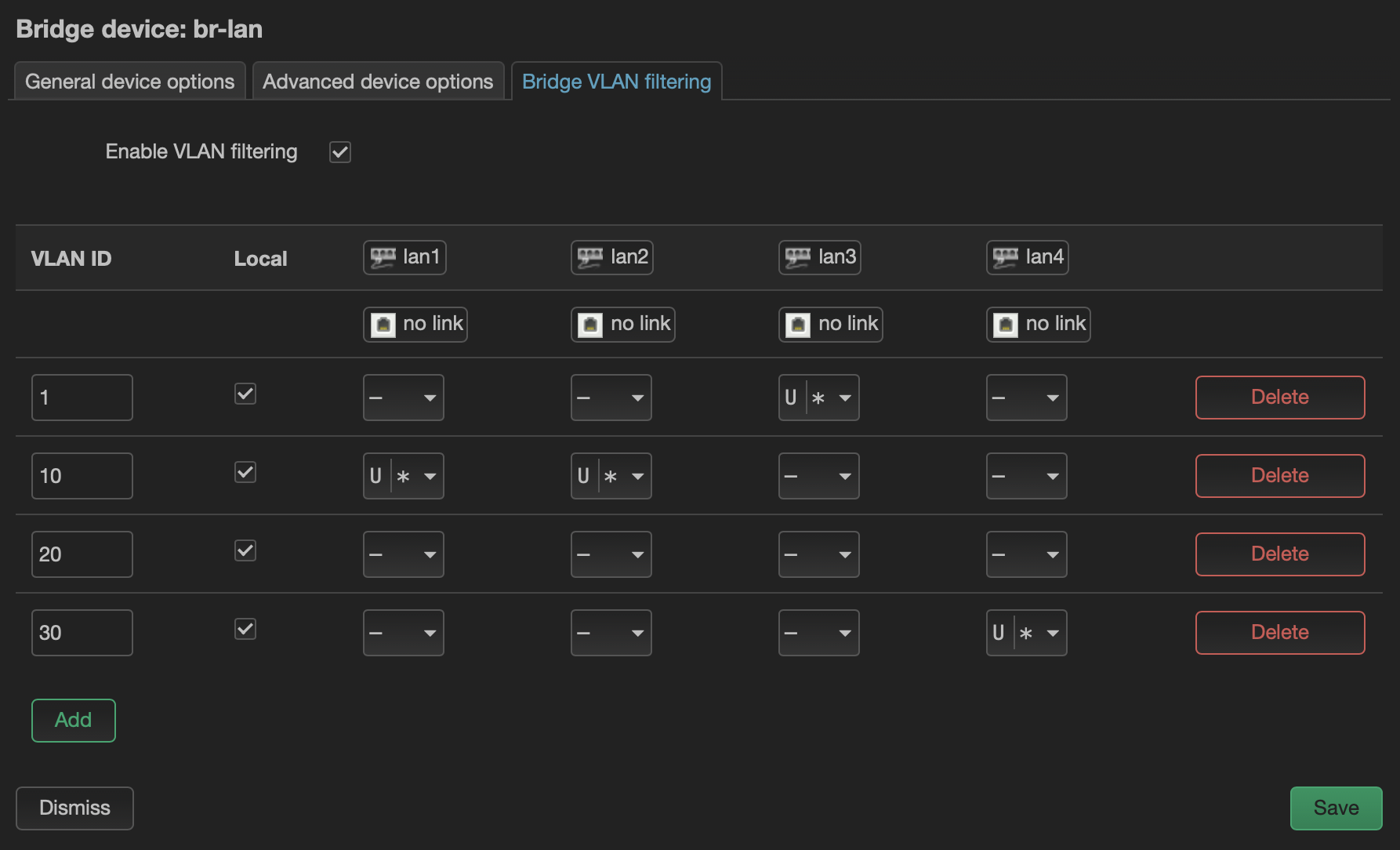

The earlier OpenWrt design used Trusted, Guest, and Lab VLANs plus a recovery network. Its screenshots and address plan remain in the OpenWrt documentation as historical implementation evidence, but they do not describe the current UniFi policy model.
Skills Demonstrated
- VLAN and SSID design
- Zone-based firewall policy
- Trust-boundary definition
- Least-privilege network access
- IoT isolation
- Network migration and documentation
